Material: Stainless Steel Grade 304 or 316
Character:
304 grade stainless steel, for standard
316 grade stainless steel, for extra corrosive environments

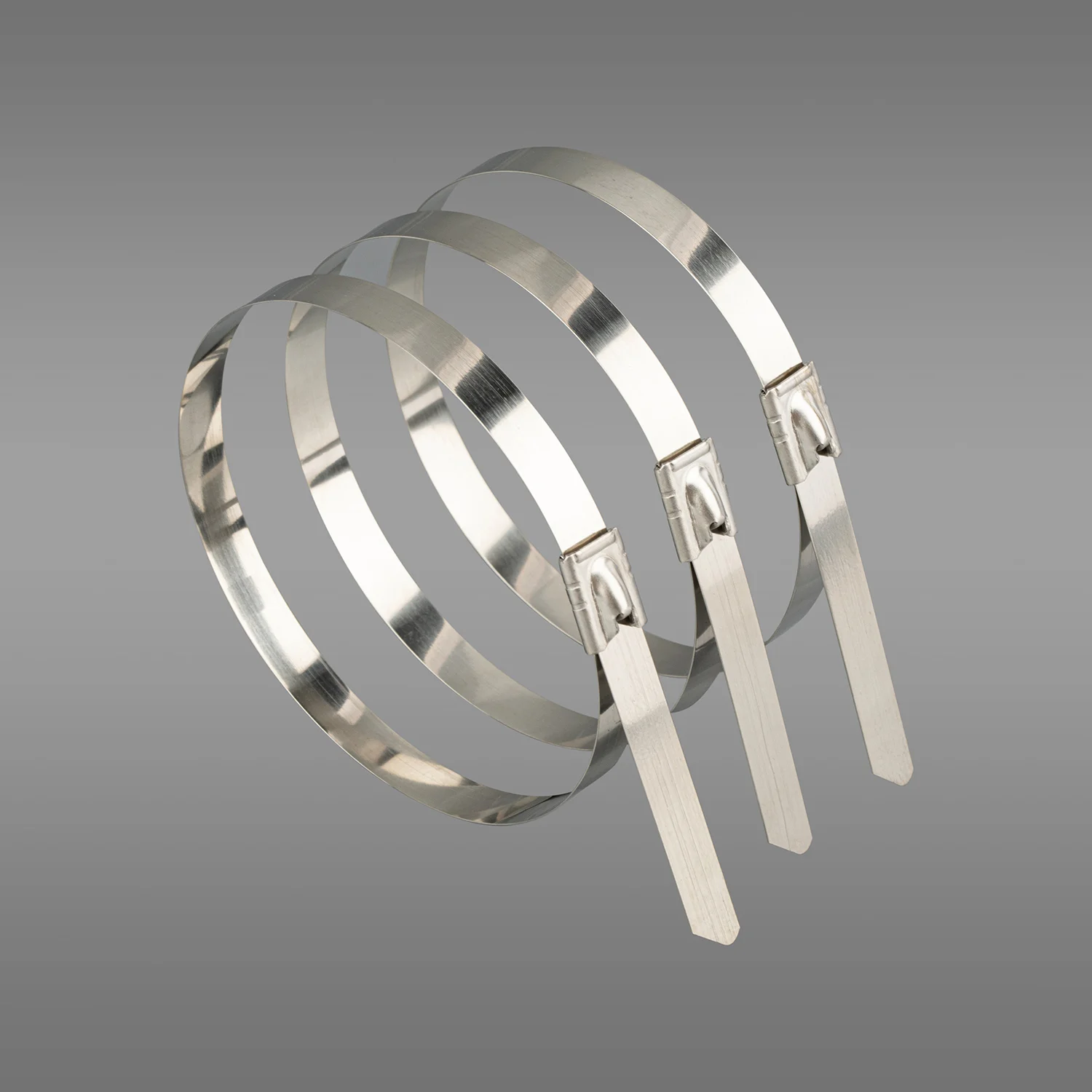

Ball lock type structure is conducive to speed up the installation,and is applicable to any
length requirements
Material: Stainless Steel Grade 304 or 316
Character:
304 grade stainless steel, for standard
316 grade stainless steel, for extra corrosive environments
Ball lock type structure is conducive to speed up the installation,and is applicable to any
length requirements

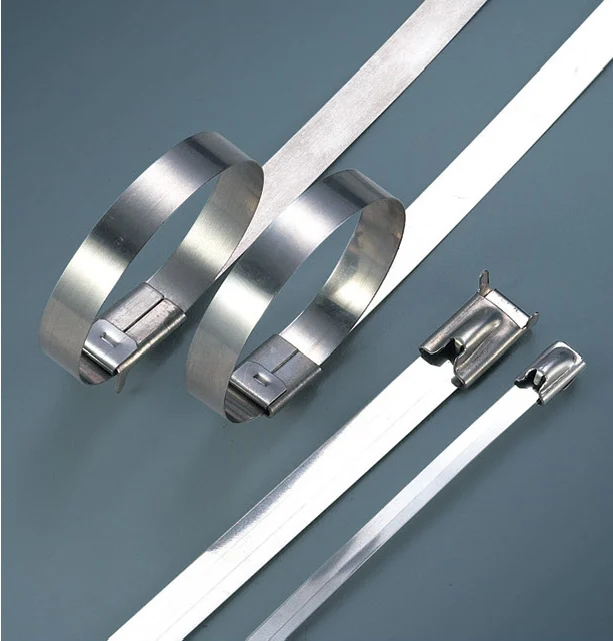

Description: Metallic band and buckle
Usage: Ieal for petrochemical, food industry, industries, power stations, mining, ship-building, offshore and any other aggressive environments.
Operating temperature: -80℃~500℃
| Тип | Approx.Length mm(inch ) | Approx .Width mm(inch ) | Max.Bundle Dia. mm (inch ) | Min .Loop Tensile Strengty N (Ibs) |
| HDGZ-4.6×150 | 150(5.9) | 4.6(0.181) | 37(1.46) | 600(135) |
| HDGZ-4.6×200 | 200(7.87) | 50(1.97) | ||
| HDGZ-4.6×250 | 250(9.84) | 63(2.48) | ||
| HDGZ-4.6×300 | 300(11.8) | 76(2.99) | ||
| HDGZ-4.6×350 | 350(13.78) | 89(3.5) | ||
| HDGZ-4.6×400 | 400(15.75) | 102(4.02) | ||
| HDGZ-4.6×450 | 450(17.72) | 115(4.53) | ||
| HDGZ-4.6×500 | 500(19.69) | 128(5.04) | ||
| HDGZ-4.6×550 | 550(21.65) | 141(5.55) | ||
| HDGZ-4.6×600 | 600(23.62) | 154(6.06) | ||
| HDGZ-7.9×150 | 150(5.9) | 7.9(0.311) | 37(1.46) | 800(180) |
| HDGZ-7.9×200 | 200(7.87) | 50(1.97) | ||
| HDGZ-7.9×250 | 250(9.84) | 63(2.48) | ||
| HDGZ-7.9×300 | 300(11.8) | 76(2.99) | ||
| HDGZ-7.9×350 | 350(13.78) | 89(3.5) | ||
| HDGZ-7.9×400 | 400(15.75) | 102(4.02) | ||
| HDGZ-7.9×450 | 450(17.72) | 115(4.53) | ||
| HDGZ-7.9×500 | 500(19.69) | 128(5.04) | ||
| HDGZ-7.9×550 | 550(21.65) | 141(5.55) | ||
| HDGZ-7.9×600 | 600(23.62) | 154(6.06) | ||
| HDGZ-7.9×650 | 650(25.59) | 167(6.57) | ||
| HDGZ-7.9×700 | 700(27.56) | 180(7.09) | ||
| HDGZ-7.9×750 | 750(29.53) | 191(7.52) | ||
| HDGZ-7.9×800 | 800(31.5) | 193(7.59) | ||
| HDGZ-12×150 | 150(5.9) | 12(0.472) | 37(1.46) | 1200(270) |
| HDGZ-12×200 | 200(7.87) | 50(1.97) | ||
| HDGZ-12×250 | 250(9.84) | 63(2.48) | ||
| HDGZ-12×300 | 300(11.8) | 76(2.99) | ||
| HDGZ-12×350 | 350(13.78) | 89(3.5) | ||
| HDGZ-12×400 | 400(15.75) | 102(4.02) | ||
| HDGZ-12×450 | 450(17.72) | 115(4.53) | ||
| HDGZ-12×500 | 500(19.69) | 128(5.04) | ||
| HDGZ-12×550 | 550(21.65) | 141(5.55) | ||
| HDGZ-12×600 | 600(23.62) | 154(6.06) | ||
| HDGZ-12×650 | 650(25.59) | 167(6.57) | ||
| HDGZ-12×700 | 700(27.56) | 180(7.09) | ||
| HDGZ-15×150 | 150(5.9) | 15(0.59) | 37(1.46) | 1500(337) |
| HDGZ-15×200 | 200(7.87) | 50(1.97) | ||
| HDGZ-15×250 | 250(9.84) | 63(2.48) | ||
| HDGZ-15×300 | 300(11.8) | 76(2.99) | ||
| HDGZ-15×350 | 350(13.78) | 89(3.5) | ||
| HDGZ-15×400 | 400(15.75) | 102(4.02) | ||
| HDGZ-15×450 | 450(17.72) | 115(4.53) | ||
| HDGZ-15×500 | 500(19.69) | 128(5.04) | ||
| HDGZ-15×550 | 550(21.65) | 141(5.55) | ||
| HDGZ-15×600 | 600(23.62) | 154(6.06) | ||
| HDGZ-15×650 | 650(25.59) | 167(6.57) | ||
| HDGZ-15×700 | 700(27.56) | 180(7.09) | ||
| HDGZ-15×750 | 750(29.53) | 191(7.52) | ||
| HDGZ-15×800 | 800(31.5) | 193(7.59) | ||
| HDGZ-15×1000 | 1000(39.37) | 206(8.11) |
