Material : Nylon 66 94V-2 agreed by UL
However to use :Put cable in ,fix by screw . .
Material : Nylon 66 94V-2 agreed by UL
However to use :Put cable in ,fix by screw . .

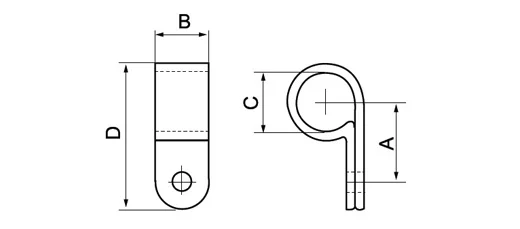

| Type | A (mm) | R (mm) | C (mm) | Nail (mm) | Packing | |
| mm | Inch | |||||
| HDS-1/8R | 9.5 | 9.6 | 3.2 | 1/8 | 19.8 | 100PCS & 1000PCS |
| HDS-3/168 | 9.6 | 9.6 | 4.8 | 3/16 | 19.8 | |
| HDS-1/4R | 12.0 | 10.0 | 6.35 | 1/4 | 22.0 | |
| HDS-5/168 | 12.0 | 10.0 | 7.9 | 5/16 | 22.0 | |
| HDS-3/8R | 12.5 | 12.0 | 9.5 | 3/8 | 24.0 | |
| HDS-1/2R | 15.2 | 12.0 | 12.7 | 1/2 | 31.0 | |
| HDS-5/8R | 18.2 | 12.0 | 15.8 | 5/8 | 34.3 | |
| HDS-3/4R | 18.2 | 12.0 | 19.4 | 3/4 | 35.0 | |
| HDS-1R | 22.0 | 12.0 | 25.4 | 1″ | 43.0 | |
| HDS-17/16R | 24.0 | 12.0 | 27.5 | 17/16″ | 50.0 | |
| HDS-5/4R | 26.2 | 12.0 | 31.8 | 1 1/4″ | 46.2 | |
| HDS-3/2R | 30.0 | 12.0 | 36.7 | 1 1/2″ | 50.0 | |
