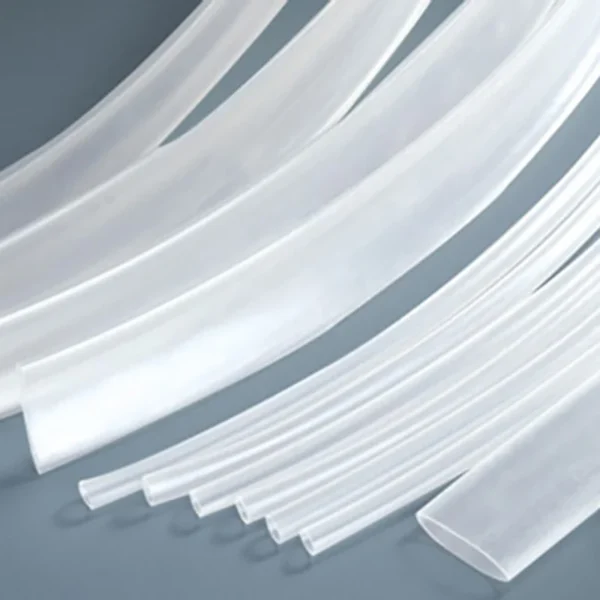

HD-6 series non-flame-retardant transparent heat shrinkable tube is made of excellent high polymer. When the products are shaped, they are cross linked and expanded continuously with electronic accelerator. The products are characterized by softness, flame reatardation, fast shrinkage, bright and durable color, and stable performance. They are widely used in the electrical connection, electrical end treatment and welding protection without flame-retardant requirements; the surface protection for spare parts of body-building facilities and steel structrue; handrail of farming and household machinery; surface protection of racks, and the decoration and lamps. Softness, insulation, fast flexibility, bright luster, convenient use, able to shrink when heated with oven or hot air gun.
Character and application
1.HD-6 series non-flame-retardant transparent heat shrinkable tube is made of excellent high polymer. When the products are shaped, they are cross linked and expanded continuously with electronic accelerator. The products are characterized by softness, flame reatardation, fast shrinkage, bright and durable color, and stable performance. They are widely used in the electrical connection, electrical end treatment and welding protection without flame-retardant requirements; the surface protection for spare parts of body-building facilities and steel structrue; handrail of farming and household machinery; surface protection of racks, and the decoration and lamps. Softness, insulation, fast flexibility, bright luster, convenient use, able to shrink when heated with oven or hot air gun.
2.Standard color: Transparent (Other colors are upon the clients’ needs).
3.. Character:
Application: -40℃~50℃; Initial shrinking temperature: 70℃;
Full shrinking temperature: 125℃; shrinking ratio: 2: 1
4.Timely delivery and large supply, convenient use, able to shrink when heated with oven or hot air gun.
5.Usage: widely used in wire connection welding protection wire marking the insulation protection of resistance and capacitor the corrosion protection of metal bar or tubes and the antenna protection.
6.Delivery time: In 7 -25 days after receiving ,according to order quantity.
7.Payment Terms: T/T,L/C,Western Union,PayPal.
| Specification | Dimension before shrinking(mm) | Dimension after shrinking (mm) |
Standard packaging (m/disc)
|
Application (mm)
|
||
| Internal diameter | Wall thickness | Internal diameter | Wall thickness | |||
| Φ2.0 | 2.2±0.3 | 0.25±0.05 | 0.98±0.1 | 0.32±0.05 | 200 | 1.1～1.8 |
| Φ2.5 | 2.6±0.3 | 0.25±0.05 | 1.23±0.2 | 0.35±0.05 | 200 | 1.35～2.3 |
| Φ3.0 | 3.2±0.4 | 0.25±0.05 | 1.45±0.2 | 0.35±0.05 | 200 | 1.6～2.7 |
| Φ3.5 | 3.6±0.4 | 0.25±0.05 | 1.72±0.2 | 0.35±0.05 | 200 | 1.85～3.2 |
| Φ4.0 | 4.2±0.4 | 0.25±0.05 | 1.96±0.2 | 0.35±0.05 | 200 | 2.1～3.6 |
| Φ4.5 | 4.6±0.4 | 0.25±0.05 | 2.20±0.2 | 0.35±0.05 | 200 | 2.35～4.0 |
| Φ5.0 | 5.2±0.4 | 0.25±0.05 | 2.48±0.2 | 0.35±0.05 | 200 | 2.6～4.5 |
| Φ6.0 | 6.2±0.4 | 0.28±0.15 | 2.96±0.3 | 0.45±0.15 | 200 | 3.1～5.4 |
| Φ7.0 | 7.2±0.4 | 0.28±0.15 | 3.48±0.3 | 0.45±0.15 | 100 | 3.7～3 |
| Φ8.0 | 8.2±0.5 | 0.28±0.15 | 3.95±0.3 | 0.45±0.15 | 100 | 4.2～7.2 |
| Φ9.0 | 9.2±0.5 | 0.30±0.15 | 4.40±0.3 | 0.50±0.15 | 100 | 4.7～8.0 |
| Φ10 | 10.2±0.5 | 0.30±0.15 | 4.90±0.3 | 0.50±0.15 | 100 | 5.2～9.0 |
| Φ11 | 11.2±0.5 | 0.30±0.15 | 5.40±0.3 | 0.50±0.15 | 100 | 5.7～10 |
| Φ12 | 12.2±0.5 | 0.30±0.15 | 5.90±0.5 | 0.50±0.15 | 100 | 6.2～11 |
| Φ13 | 13.2±0.5 | 0.33±0.15 | 6.40±0.5 | 0.50±0.15 | 100 | 6.7～12 |
| Φ14 | 14.2±0.5 | 0.35±0.15 | 6.90±0.5 | 0.50±0.15 | 100 | 7.3～13 |
| Φ15 | 15.2±0.6 | 0.38±0.15 | 7.40±0.5 | 0.60±0.15 | 100 | 7.8～14 |
| Φ16 | 16.2±0.6 | 0.38±0.15 | 7.90±0.5 | 0.60±0.15 | 100 | 8.3～15 |
| Φ17 | 17.2±0.6 | 0.38±0.15 | 8.40±0.5 | 0.60±0.15 | 100 | 8.8～16 |
| Φ18 | 18.2±0.6 | 0.40±0.15 | 8.90±0.5 | 0.60±0.15 | 100 | 9.3～17 |
| Φ20 | 20.2±0.8 | 0.40±0.20 | 9.90±0.5 | 0.70±0.20 | 100 | 11.4～19 |
| Φ22 | 22.2±0.8 | 0.42±0.20 | 10.80±1.0 | 0.70±0.20 | 100 | 12.4～21 |
| Φ25 | 25.3±0.8 | 0.45±0.20 | 12.30±1.0 | 0.70±0.20 | 50 | 12.8～24 |
| Φ28 | 28.3±0.8 | 0.45±0.20 | 13.50±1.0 | 0.70±0.20 | 50 | 14.4～29 |
| Φ30 | 30.2±0.8 | 0.45±0.20 | 14.70±1.0 | 0.70±0.20 | 50 | 16～29 |
| Φ35 | 35.2±0.8 | 0.50±0.20 | 17.30±1.0 | 0.80±0.20 | 50 | 18～34 |
| Φ40 | 40.0±1.0 | 0.50±0.20 | 19.80±1.0 | 0.80±0.20 | 50 | 21～39 |
| Φ50 | 50.0±1.0 | 0.50±0.20 | 24.80±1.0 | 0.80±0.20 | 50 | 26～49 |
